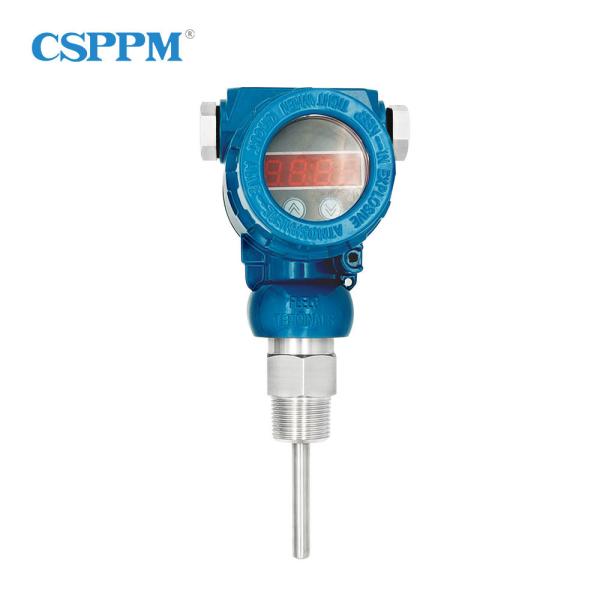

SS316L Electronic Temperature Transmitter Accuracy 0.2%

Product Categories
Changsha Taihe Electronic Equipment Co., Ltd.
Contact Now

SS316L Electronic Temperature Transmitter Accuracy 0.2%

Brand Name : CSPPM

Model Number : PPM-WZPB-2088

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : Western Union, T/T, L/C

Packaging Details : Standard package

Measuring range : -200 ～ 650 ℃

Power supply : 4-20mA

Output : 4-20mA, 0-5VDC, 0-10VDC are optional

Accuracy : 0.2%, 0.5% optional

Working ambient temperature : -40-85 ℃

Temperature measuring element : Pt100, Pt1000, T, K are optional

Protection tube diameter : Ф4 ～ Ф16, Ф18, Ф20, Ф22, Ф28, Ф35, Ф40 or specified

Insertion length : 50, 100, 150, 200, 300, 400, 500, 750, 1000 or specified

Ambient humidity : 95% RH, non-condensing

Contact Now

SS316L Accuracy 0.5% Electronic Temperature Transmitter

Features

1. They can measure temperatures of liquid, steam,gas and solid in producing.
2. Characteristics are shock resistant, high-temperature resistant and long life.
3. Used for temperature measuring and automatic controlling in scope from -200 to 600ºC.

Product introduction:

PPM-WZPB-2088 temperature transmitter organically integrates the temperature sensing element (thermal resistance or thermocouple) with the

signal conversion and amplification unit, and is used to measure liquids, steam and other gaseous media in the range of -200ºC-650ºC degrees

in various processes. The temperature of the solid surface.

Features simple structure, easy installation, use and easy maintenance.

Applications

Petroleum, chemical, metallurgy

machinery, electricity, steel,

glass, ceramics, heat treatment

Technical Parameters :

Measuring range: -200 ～ 650 ℃
Power supply : 4-20mA
Output: 4-20mA, 0-5VDC, 0-10VDC are optional
Accuracy: 0.2%, 0.5% optional
Working ambient temperature: -40-85 ℃
Ambient temperature influence: 0.25% / 10 ℃
Temperature measuring element: Pt100, Pt1000, T, K are optional
Protection tube diameter: Ф4 ～ Ф16, Ф18, Ф20, Ф22, Ф28, Ф35, Ф40 or specified
Process connection method: No fixing device, fixed thread, movable thread, movable flange, fixed flange GB / ANSI standard optional
Insertion length : 50, 100, 150, 200, 300, 400, 500, 750, 1000 or specified
Protection tube material : 316L stainless steel, nickel alloy
Nominal pressure: 20MPa, ≤10MPa, ≤4.0MPa, ≤2.5MPa, normal pressure optional
Protection class: IP65
Thermal response time: 0.3S
Ambient humidity: 95% RH, non-condensing

Definition of wiring:

2-wire system 3-wire system
SS316L Electronic Temperature Transmitter Accuracy 0.2% Power supply red red
Negative power black black
Signal positive 一 green

Dimensions in mm :

SS316L Electronic Temperature Transmitter Accuracy 0.2%
