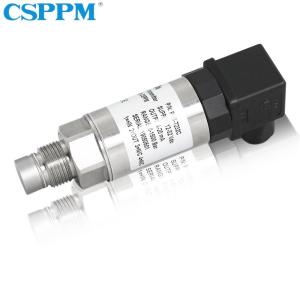

316L Stainless Steel Flat Diaphragm Pressure Sensor With Aerial Plug

Name: 316L Stainless Steel Flat Diaphragm Pressure Sensor With Aerial Plug
Brand: CSPPM
Price: 1 USD

China 316L Stainless Steel Flat Diaphragm Pressure Sensor With Aerial Plug factory

Brand Name : CSPPM

Model Number : PPM-T232C

Certification : CE

Place of Origin : China

MOQ : 1 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard export packing, including instructions and certificate

Measured medium : Non-corrosive gas and liquid to 17-4PH, 316L stainless steel

Pressure Type : Sealed Reference Pressure, Ventilator Pressure

Measuring range : 0 ～ 6MPa… 10MPa… 150MPa

Power supply : 24VDC (12-32VDC)

Output signal : 4-20mA, 1-5VDC, 0-5VDC, 0-10VDC selectable

Mounting thread : M20 × 1.5, G1 / 2, 1 / 2NPT

Electrical interface : Hirschmann connector, aerial plug, direct outlet

Non-linear : 0.2% FS

Repeatability : 0.2% FS

Accuracy : 0.2% FS, 0.5% FS optional

Contact Now

Flat Diaphragm Pressure Sensor

Product Introduction:

Flat diaghragm pressure sensor with sanitary flush diaphragm. All process connections of the flush pressure transmitter are made of stainless steel, fully welded and isolate the process medium from the pressure measuring instrument via a positive seal.

Applications :

● Food and beverage industry

● Filling and packing machinery

● Dairy and beverage processing

● Food grade pressure sensor

● Flat diaphragm pressure sensor

Technical Parameters :

Measured medium :	Non-corrosive gas and liquid to 17-4PH, 316L stainless steel
Pressure Type :	Sealed Reference Pressure, Ventilator Pressure
Measuring range:	0 ～ 6MPa… 10MPa… 150MPa
Power supply :	24VDC (12-32VDC)
Output signal :	4-20mA, 1-5VDC, 0-5VDC, 0-10VDC selectable
Mounting thread :	M20 × 1.5, G1 / 2, 1 / 2NPT
Electrical interface :	Hirschmann connector, aerial plug, direct outlet
Non-linear :	0.2% FS
Repeatability :	0.2% FS
Accuracy:	0.2% FS, 0.5% FS optional
Long-term stability :	0.2% FS / year (typical value)
Working environment temperature :	-20 ～ + 75 ℃
Working medium temperature :	-40 ～ + 85 ℃

Definition of wiring:

Hirschmann Connector
		2-wire system	3-wire system
	Power supply	1	1
	Negative power	2	2
	Signal positive	一	3
Direct outgoing
		2-wire system	3-wire system
	Power supply	red	red
	Negative power	black	black
	Signal positive	一	green

Dimensions in mm :

316L Stainless Steel Flat Diaphragm Pressure Sensor With Aerial Plug
